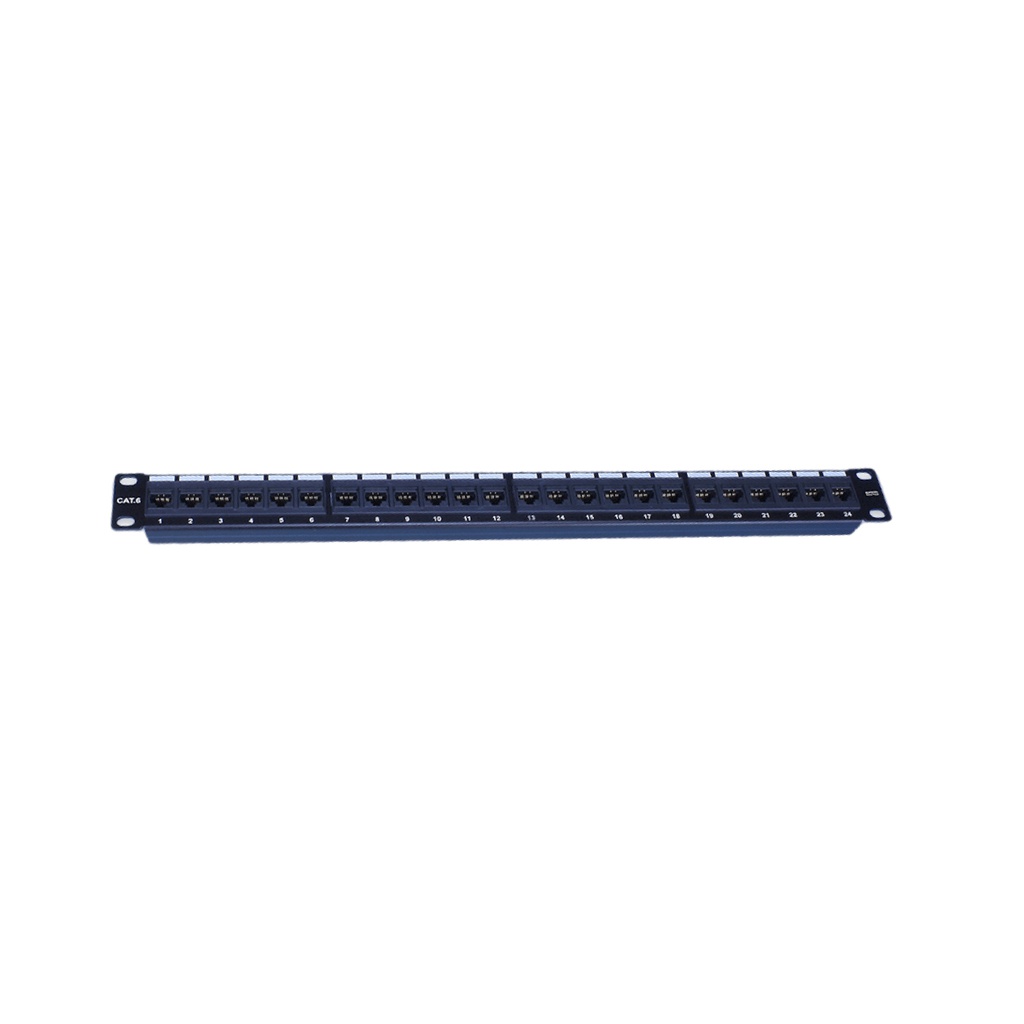

REPOTEC Cat.6 Unshielded Patch Panel, 24-P Dual IDC, T568A/B Wired

₨ 0.00 ₨ 0.00 NPR 0.0

₨ 0.00

Add to Cart Buy Now
REPOTEC Cat.6 Unshielded Patch Panel, 24-P Dual IDC, T568A/B Wired

REPOTEC Cat.6 Unshielded Patch Panel, 24-P Dual IDC, T568A/B Wired

1

    This combination does not exist.


    Request Quote

    Share

    Copy to clipboard

    The REPOTEC Cat.6 Unshielded Patch Panel is a professional-grade networking solution for high-speed data transfer. With 24 dual IDC ports, it provides best connectivity for your network setup. The patch panel is wired for both T568A and T568B standards, offering versatile compatibility with a wide range of networking equipment.


    The Cat.6 unshielded construction ensures fast and reliable data transfer. The patch panel's compact design and easy installation make it an ideal choice for data centers, enterprise networks, and home networks. Get the REPOTEC Cat.6 Unshielded Patch Panel now and take your network performance to the next level.


    The REPOTEC Cat.6 Unshielded Patch Panel is a high-performance networking solution designed to meet the demands of data centers, enterprise networks, and home networks. With 24 dual IDC ports, this patch panel offers the best connectivity options for your network setup. It supports both T568A and T568B standards, ensuring compatibility with a wide range of networking equipment.


    The unshielded construction of this Cat.6 patch panel delivers fast and reliable data transfer, making it a top choice for high-speed networks. Its compact design and easy installation make it a convenient solution for your network infrastructure.


    The REPOTEC Cat.6 Unshielded Patch Panel meets ANSI/TIA/EIA-568-B.2 Category 5e, ANSI/TIA/EIA-568-B.2-1 Category 6, ISO/IEC Generic Cabling Standard 11801, and CENELEC Generic Cabling Standard EN50173. Its electrical specifications include a current rating of 1.5 Amp Max, a voltage rating of 150 Volts, and a contact resistance of 20m-ohm. The insulation resistance is 500M-ohm and the dielectric withstand voltage is 1000 VAC RMS, 60Hz 1MIN.


    The IDC is made of PC UL 94V-0, and it accepts 22-26 AWG solid cables. The PCB is made of FR-4 1.6m/m thickness, 2 layers. The contact is made of 0.45mm Phosphor Bronze with 50µ Gold Plating on the contact area. The unit is available in 1U (16 & 24 ports) and 2U (32 & 48 ports) for 19" Rack Mount and the metal case is 1.6m/m thickness metallic.


    Upgrade your network performance with the REPOTEC Cat.6 Unshielded Patch Panel. Order now  from Platforms Hub and enjoy fast and reliable data transfer for your network setup

    Specifications for REPOTEC Cat.6 Unshielded Patch Panel, 24-P Dual IDC, T568A/B Wired

    Brand Repotec
    Ports 24
    Standard Meets C6 EIA/TIA 568B Standard
    Front Plate Fireproof ABS UL-94V0
    Panel Metal (SPCC)
    Jack 8P8C 50 micro inches gold plated
    IDC Pin Bronze & Tinned
    IDC Punch Down Cycle Over 250 Cycles (min.)

    The REPOTEC Cat.6 Unshielded Patch Panel is a professional-grade networking solution for high-speed data transfer. With 24 dual IDC ports, it provides best connectivity for your network setup. The patch panel is wired for both T568A and T568B standards, offering versatile compatibility with a wide range of networking equipment.


    The Cat.6 unshielded construction ensures fast and reliable data transfer. The patch panel's compact design and easy installation make it an ideal choice for data centers, enterprise networks, and home networks. Get the REPOTEC Cat.6 Unshielded Patch Panel now and take your network performance to the next level.


    The REPOTEC Cat.6 Unshielded Patch Panel is a high-performance networking solution designed to meet the demands of data centers, enterprise networks, and home networks. With 24 dual IDC ports, this patch panel offers the best connectivity options for your network setup. It supports both T568A and T568B standards, ensuring compatibility with a wide range of networking equipment.


    The unshielded construction of this Cat.6 patch panel delivers fast and reliable data transfer, making it a top choice for high-speed networks. Its compact design and easy installation make it a convenient solution for your network infrastructure.


    The REPOTEC Cat.6 Unshielded Patch Panel meets ANSI/TIA/EIA-568-B.2 Category 5e, ANSI/TIA/EIA-568-B.2-1 Category 6, ISO/IEC Generic Cabling Standard 11801, and CENELEC Generic Cabling Standard EN50173. Its electrical specifications include a current rating of 1.5 Amp Max, a voltage rating of 150 Volts, and a contact resistance of 20m-ohm. The insulation resistance is 500M-ohm and the dielectric withstand voltage is 1000 VAC RMS, 60Hz 1MIN.


    The IDC is made of PC UL 94V-0, and it accepts 22-26 AWG solid cables. The PCB is made of FR-4 1.6m/m thickness, 2 layers. The contact is made of 0.45mm Phosphor Bronze with 50µ Gold Plating on the contact area. The unit is available in 1U (16 & 24 ports) and 2U (32 & 48 ports) for 19" Rack Mount and the metal case is 1.6m/m thickness metallic.


    Upgrade your network performance with the REPOTEC Cat.6 Unshielded Patch Panel. Order now  from Platforms Hub and enjoy fast and reliable data transfer for your network setup
